Filters 40-480A

Interference filters 40A - 480A

Technical data

  • nominal voltage 3x500V/50-60 Hz (also for IT networks)

  • nominal current - see table

  • specific dielectric strength between terminals 1.000V DC, between terminals and case 3.000V DC

  • IP20 protection

  • nominal temperature +40°C

  • category climatic immunity 25/70/10

  • the filters are attached to a metal frame connected to the skeleton with four M6 screws

  • attenuation characteristics - see graph



Type of filter Nominal current [A] Cross section
[mm2]		 Order number Weight [kg] Size Price
M0403S02-16 40 16 371512903102 4,0 1 price
M0633S02-16 63 16 371512903104 4,1 1 price
M0403S02-35 40 35 371512903106 4,2 2 price
M0633S02-35 63 35 371512903108 4,3 2 price
M1003S02-35 100 35 371512903110 7,7 3 price
M1003S02-70 100 70 371512903112 8,6 4 price
M1603S02-70 160 70 371512903114 9,7 4 price
M1603S02-95 160 95 371512903116 10,3 5 price
M2503S02-95 250 95 371512903118 10,5 5 price
M3253S02-702 325 2x70 371512903120 10,7 5 price
M4803S02IP00 480 - 371512903121 14 2 price




Table - Type of filter

NC

 filters for convertors

N

 L element- modification

NM

 filters for convertors

P

 p - element

NL

 filters for convertors

C

 dual filters for convertors

NA

 L element sealed

A

 L element sealed

NB, ND

 L element sealed

S

 special model

L

 L element

F

 filters for Faraday boxes

M

 L element- modification




Table - Leaking current max.
0 no limit 6 1.7 mA
1 0.75 mA 7 20 mA
2 3.5 mA 8 1.5 mA
3 10 mA 9 other
4 40 mA N none
5 0.35 mA





  • filters of the lowpass filter type are designed to suppress radio interference in the frequency band 0.15 - 30MHz

  • the filters are connected in such a way that alignment of the suppressed (inlet) and unsuppressed (outlet and all other) wires does not occur



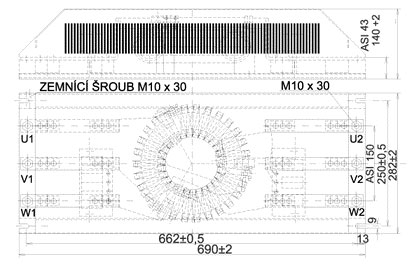

PICTURE 2

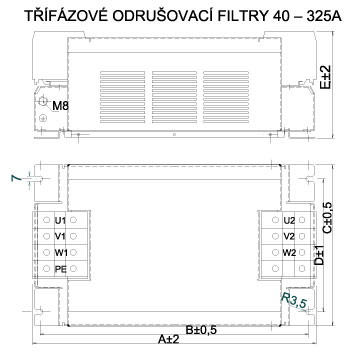

Size 1 2 3 4 5
A 260 262 320 384 408
B 240 240 300 360 380
C 162 162 222 222 222
D 140 140 180 180 180
E 120 125 125 148 152
